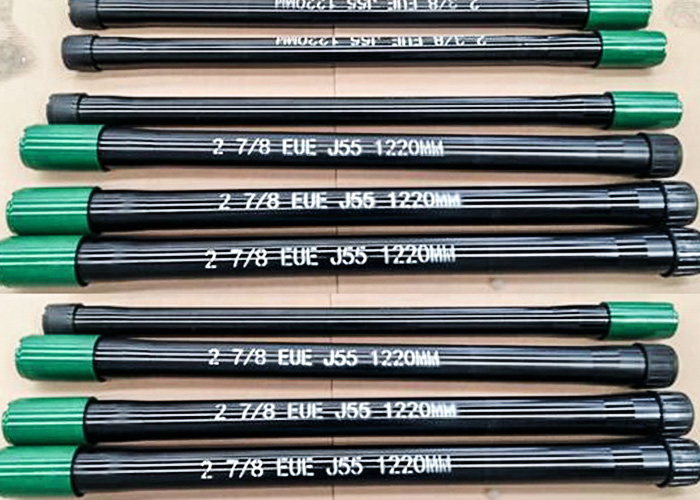

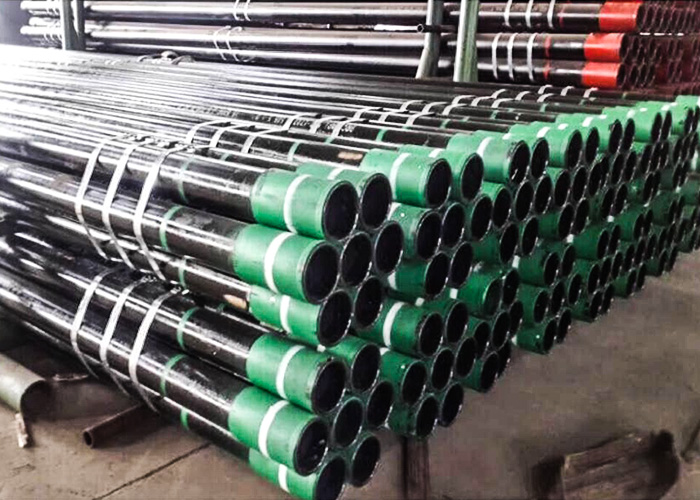

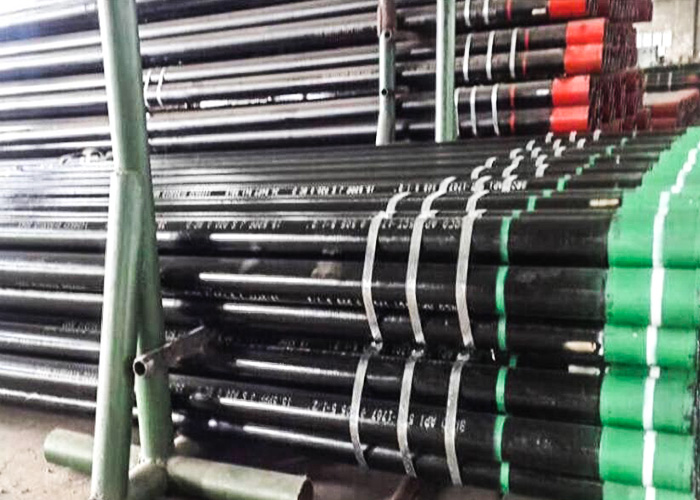

Pup Joint
DIC is an Exporter of Pup Joints. These are used to adjust the depth of downhole tools. All our pup joints are manufactured as per API 5CT requirements. Due to their shorter length, they are typically easier to handle. All hard banding and coating options are available as per required. Premium Pup Joints are also available with premium connections in API or exotic alloy grades.
If you have any query, Contact us Or, Request a quote Now!!
Technical Specifications:
- Standard: API 5CT 10th Edition
- Specification: From 0.75” to 20”
- Grade: H40, J55, K55, N80, L80, C90, T95, P110, C110, Q125
- Connection: EU, NU, SC, LC, BC, and premium thread, Pin * Pin, Box*Pin.
Tubing Pup Joint
| Outside Diameter | 0.75 to 4.5 inches nominal size OD |
|---|---|
| Weight | Standard or Heavy Wall |
| Lengths | 2,3,4,6,8,10 12 ft (with other lengths available upon request) |
| Grades | J-55, N-80, N-80Q & T, L-80, P-110, H40, C90 |
| Connections | EUE, NUE, Buttress, and Premium Connections of leading manufacturers are available. |
Casing Pup Joint
| Outside Diameter | 0.75 to 4.5 inches nominal size OD |
|---|---|
| Weight | Standard or Heavy Wall |
| Lengths | 2,3,4,6,8,10 12 ft (with other lengths available upon request) |
| Grades | J-55, N-80, N-80Q & T, L-80, P-110, H40, C90, Q125 |
| Connections | EUE, NUE, Buttress, and Premium Connections of leading manufacturers are available. |
Note: All the material is procured from API approved mills.
